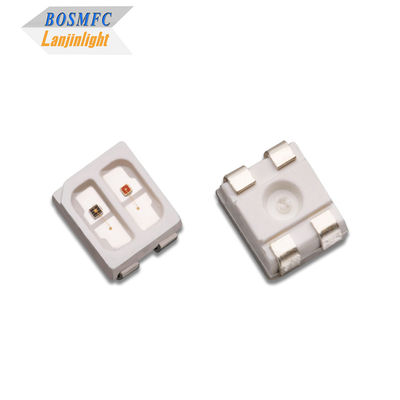

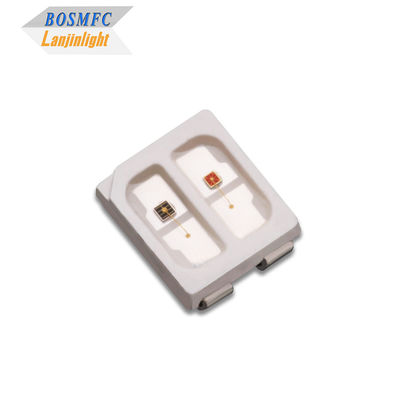

3528 SMD LED dual-color red 620nm+860nm infrared light designed for aesthetic therapy,synergistic skin treatment and pain relief.
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | BOSMFC |
| Chứng nhận: | Rohs, Reach |
| Số mô hình: | 3528 SMD LED màu đỏ+ IR |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 2000pcs |
|---|---|
| chi tiết đóng gói: | 2000pcs/reel, reel+túi chống tĩnh+thùng carton |
| Thời gian giao hàng: | 5-15 ngày |
| Điều khoản thanh toán: | T/T, Liên minh phương Tây, PayPal |
| Khả năng cung cấp: | 500kk/tháng |
|
Thông tin chi tiết |
|||
| Quyền lực: | 0,5W | Phát ra màu sắc: | Ánh sáng LED hồng ngoại |
|---|---|---|---|
| Bước sóng: | 620/850nm | Chuyển tiếp hiện tại: | 20mA |
| Điện áp chuyển tiếp: | 1.8-2.4V/1.3-1.7V | Xem góc: | 120 ° |
| Kích cỡ: | 3.5*2,8*1,5mm | Nhiệt độ hoạt động (℃): | -40 - +85 |
| Nhiệt độ lưu trữ (℃): | -40 - +100 | Tuổi thọ: | 50.000 giờ |
| Bảo hành: | 3 năm | Thương hiệu Chip: | San'an chip / chip epistar |
| Bưu kiện: | 2000pcs/reel | ||
Mô tả sản phẩm
3528 SMD LED dual-color red 620nm+860nm infrared light designed for aesthetic therapy,synergistic skin treatment and pain relief.
This custom 3528 SMD LED integrates dual wavelengths—620nm red light and 860nm infrared—into a single compact source. Designed specifically for aesthetic therapy, the red light rejuvenates skin and reduces inflammation, while the deeper-penetrating infrared relieves muscle and joint pain. Their synergistic effect enhances treatment outcomes for professional and home-use skincare and pain relief devices, delivering targeted, effective phototherapy.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Instant light(less than 100ns)
- RoHS and Reach certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 620nm
850nm |
--- |
3 7 |
--- | LM
mW |
IF=20mA |
| Dominant wavelength | 620nm
850nm |
620 840 |
--- |
630 860 |
nm | IF=20mA | |
| Forward voltage | VF | 620nm
850nm |
2.0 1.4
|
--- |
2.4 1.8 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*2.8*1.5mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
1. Facial Rejuvenation: Stimulates collagen to reduce wrinkles.
2. Acne Reduction: Blue light targets bacteria.
3. Pain Relief: Infrared soothes muscles and joints.
4. Skin Healing: Accelerates tissue repair.
5. Anti-Inflammation: Reduces swelling and redness.
